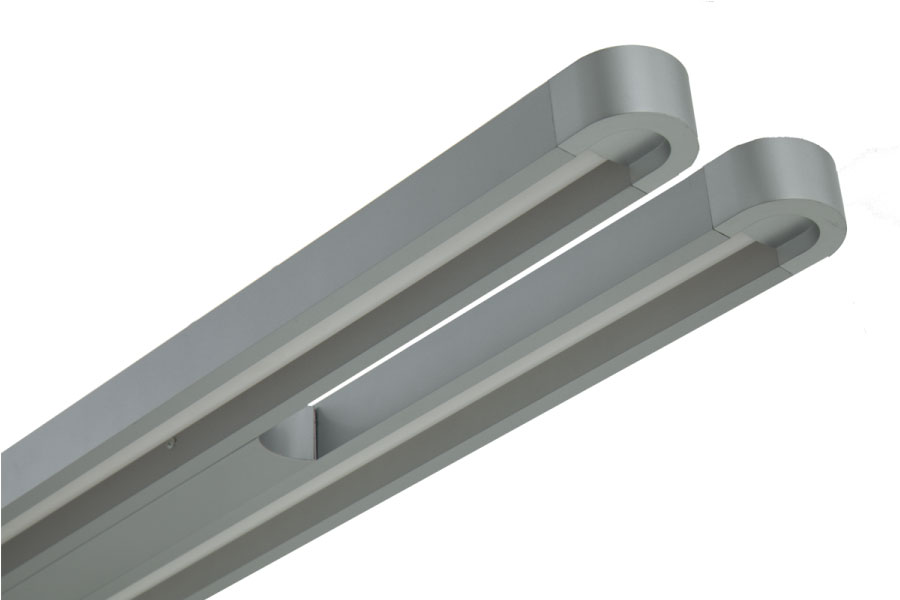

Horizon™ series linear luminqires engineered for a high-end finish across a range on installations & applications. Options of single & double configuration for suspension make this luminaire highly suited to commercial applications such as reception, office, retail & general public spaces.
Utilising a series of OMNI®light engines, luminaire benefits from industry leading efficacy of 95lm/W, with added benefit of long-term maintenance & serviceability of luminaire possible. Supplied with fixing kit suitable for both ceiling mounting suspension, or wall mount (single only), 1210mm linear design with a superior lumen output up
to 2,100lm, for ample lux levels across a range of environments.
Further options of dimmable versions: analogue dimmable 1-10V (-AD), DALI dimming (-DL), DSI (-DSI) and 3-hour emergency self-test (-EM) or auto-test (-AEM) plus LED status indicator light.
Product information
Rated life span of +45,000 hours / No UV or IR emissions / Immediate start & flicker free / Environmentally friendly & part recyclable: no mercury or other hazardous materials / Lightweight powder coated aluminium housing / M3/NM3 Emergency version also available / Optional built-in microwave detection / Optional built-in PIR sensor with daylight dimming function & occupancy detection
Product Specification
|
Beam Angle |
120° |
|
Luminous Efficacy |
Up to 95lm/W |
|
Input Voltage |
100-280V AC |
|
High Colour Rendering Index |
Up to 80Ra |
|
Light Engine Type |
OMNI® Light Engines |
|
Operating Temperature |
-20°C to 50°C |
