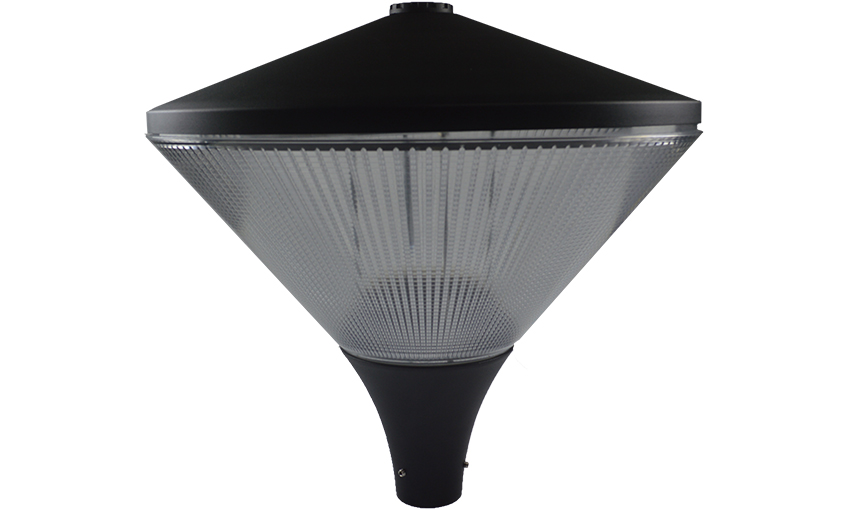

360™ series post-top is a modern designed LED luminaire for column/ post mounting at heights of 3 – 7m, suited to general open areas such as pedestrian areas, car parks and low-to-medium traffic urban applications.
IP65 RAL black die-cast aluminium housing finished with polycarbonate diffuser, the 360™ luminaire gives all round uniform illumination with minimal light spillage, capable for reaching 20-30lux from typical 5-6m installations. Furthermore, luminaire compatiable with standard external mains photocells for complete dusk-till-dawn control. Unit complete with base mount for 60mm (78mm available on request) column-entry hence universally compatible.
Additional benefits include 95lm/W efficiency, +55,000hour maintenance free performance and minimal disturbance to nocturnal wildelife to the lack of UV/IR spectrum associated with LED photometric
characteristics.
Product information
Durable with rated life span of +55,000 hours / No UV or IR emissions / Instant Illumination & Flicker free / CE & RoHS international standards / Environmentally friendly & part recyclable: no mercury or other hazardous materials used / Heavy duty diecast aluminum housing & 2mm toughened PC optics / Complies with EN60598
Product Specification
|
Beam Angle |
360˚ (All-round-optic) |
|
Luminous Efficacy |
Up to 95lm/W |
|
Input Voltage |
100-280V AC |
|
High Colour Rendering Index |
≥80Ra |
|
Light Engine |
SDOMNI-1140 |
|
Operating Temperature |
-20°C to 50°C |
|
Power Factor |
≥0.95 |
|
Mounting Height |
3-7m |
Product Gallery
