Constant Current LED Driver / Power Supplies – IP66

Products Constant Current LED Driver / Power Supplies – IP66

Product Details

Range of high efficiency constant current LED drivers / power supplies.

IP66 enclosed suitable with Molex® quick-fit connectors throughout the range. Available from 350mA – 2000mA (15W – 80W), hence suitable for a wide range of light engines with a output voltage of 20-40V DC.

For further information & advice please contact us prior to ordering.

Product information

Durable with a rated life span of +100,000 hours / No UV or IR emissions / Instant on & Flicker free / CE & RoHS international standards / Environmentally friendly / Molex® wire connector – 100mm / Screw fixing points / Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C ( 75% load) ; EN61000-3-3

Product Specification

Input Voltage

100-280V AC

Frequency

[50-60Hz]

Power Factor

PF>0.98/110V PF>0.92/230V

THD

THD<5.2%/110V THD<7.4/230V

Operating Temperature

-20°C to 50°C

IP66

CLASS II

Built in protection:

short circuit / over current /
over voltage / over temperature

Voltage Tolerance

+/- 10%

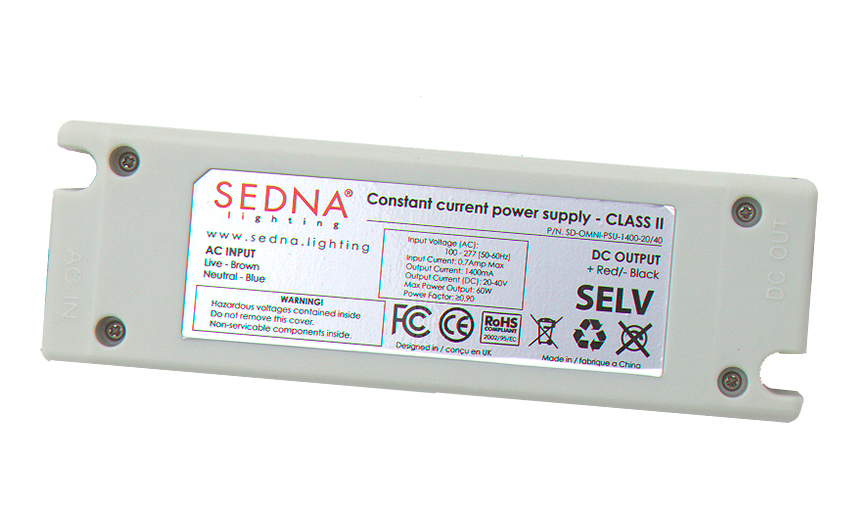

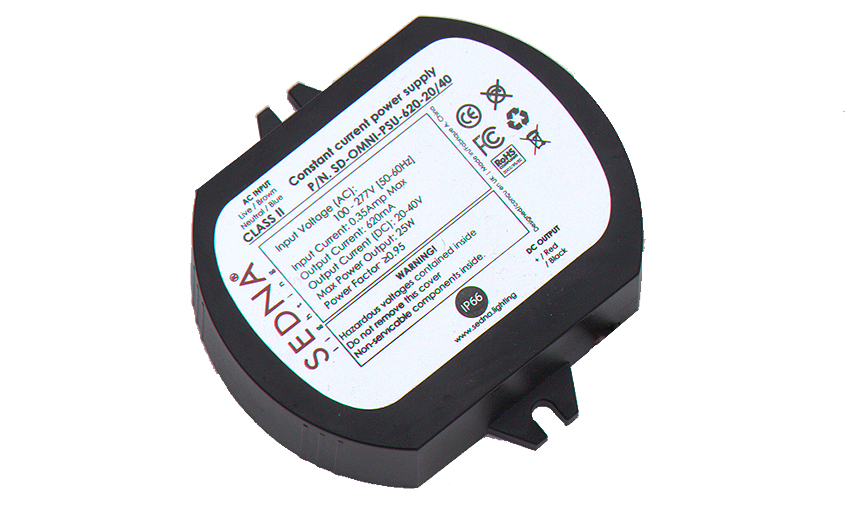

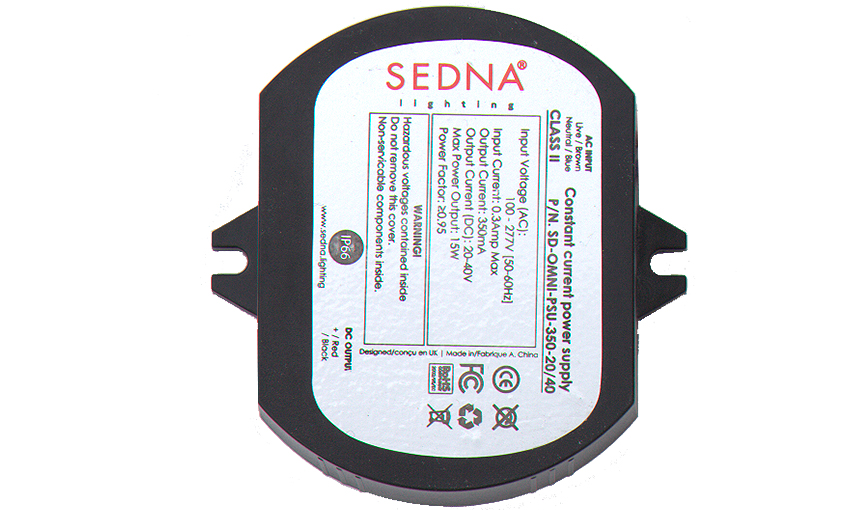

Product Gallery
