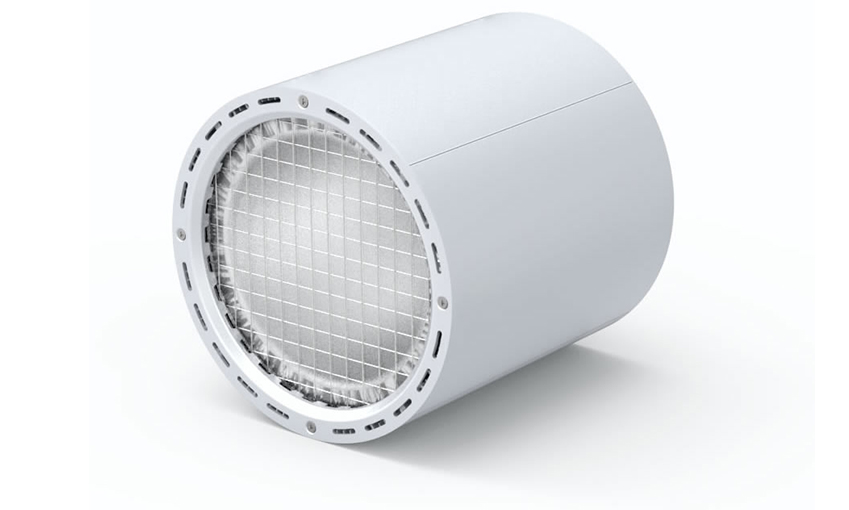

Suspended LED downlights are designed for large open public spaces with aesthetics in mind such as airports, retail and train stations. High lumen performance up to 11,000lumen make this luminaire suitable for reaching high lux levels even when mounted up to 10m.
Option of 80W / 120W designed to replace up to 250W Metal Halide / SON fittings, these luminaires are designed to be suspended at heights of 6 – 10m. Multiple mount options for ease of install: threaded rod – M12 (SDSDL-XXX-ROD) or additional mounting hook for chain suspension (SDSDL-XXX-HK).
High lumenous efficacy up to 90lm/W powered by CREE® XTE LEDs, whilst PMMA optic ensures low-glare for anti fatigue photometric performance with a 100˚ beam angle. Finished in RAL grey powder coated aluminium.
Product information
Durable with rated life span of +50,000 hours / No UV or IR emissions / Instant illumination & Flicker free / Conforms with international standards / Environmentally friendly & part recyclable: no mercury or other hazardous materials used / RAL Grey electrostatic ally coated aluminium housing / PMMA diffuser / M12 threaded rod-mount (SDSDL-XXXROD) or mounting hook on request (SDSDL-XXX-HK)
Product Specification
|
Beam Angle |
100° |
|
Luminous Efficacy |
Up to 90lm/W |
|
Input Voltage |
AC 110-280V |
|
High Colour Rendering Index |
≥ 85Ra |
|
LED Type |
CREE® XTE 3535 LEDs |
|
Operating Temperature |
-20°C to 50°C |
|
Power Factor |
≥ 0.95 |
Product Gallery
