Sedna Lighting

Modular LED Panel Lighting

Easy installation to fit directly into ceiling grids.

Can fit into ceiling grids or be suspended/surface-mounted. These luminaires offer an energy efficient solution with a rated life span of +10 years, rendering it virtually maintenance free. Easy installation ideal for LED office lighting applications.

Products Modular LED Panel Lighting

Product Details

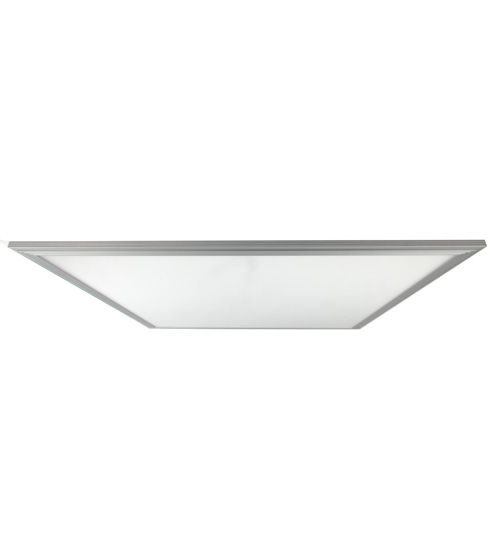

Slim profile 6063-silver anodised aluminium surround with a low glare light distribution panel producing a UGR of 20 to ensure uniform illumination. Our standard size light panels lay directly into ceiling grids with simple installation or can be suspended/surface-mounted. These luminaires are a direct replacement for 4 x 18W T8 lay-in tube modules, providing an energy efficient solution with almost 100% LOR. A rated life span of +10 years is most beneficial, rendering lighting virtually maintenance free. IP44 ensures suitable for clean room environments. Options of mounting fixtures/ceiling suspension kit (SDPL-SUSP) or surface mount brackets (SDPL-BR) also available for surface mounting. A high performance 595mm x 595mm unit boasts lumen outputs up to 4000 lumens from just 44 circuit Watts, requiring less units to achieve a uniform 500 lux on the working plane or suitable for high level installations, making these units the specifiers number one choice in commercial and industrial applications. Further options of dimmable: DALI (-DL) / 1-10V (-AD)control systems/ occupancy detection and daylight dimming, as well as emergency backup kit at 10% brightness, 3-hour maintained (M3) /non-maintained (NM3) emergency pack (SDPL-XXXX-EM)

Product information

 Rated life span of +40,000 hours / No UV or IR emissions / Immediate start & flicker free / Environmentally friendly & part recyclable: no mercury or other hazardous materials / Lightweight aluminium housing / 6mm light-wave guide panel / 3-Hour M3/ NM3 emergency kit also available / Optional mounting fixtures & suspension kit also available.

Product Specification

Beam Angle

120°

Luminous Efficacy

Up to 90lm/W

Input Voltage

AC 100-280V

High Colour Rendering Index

Up to 80Ra

LED Type

Epistar SMD 2835 LEDs

Operating Temperature

-20°C to 50°C

Power Factor

≥ 0.90

Download product instructions here.
