Sedna Lighting

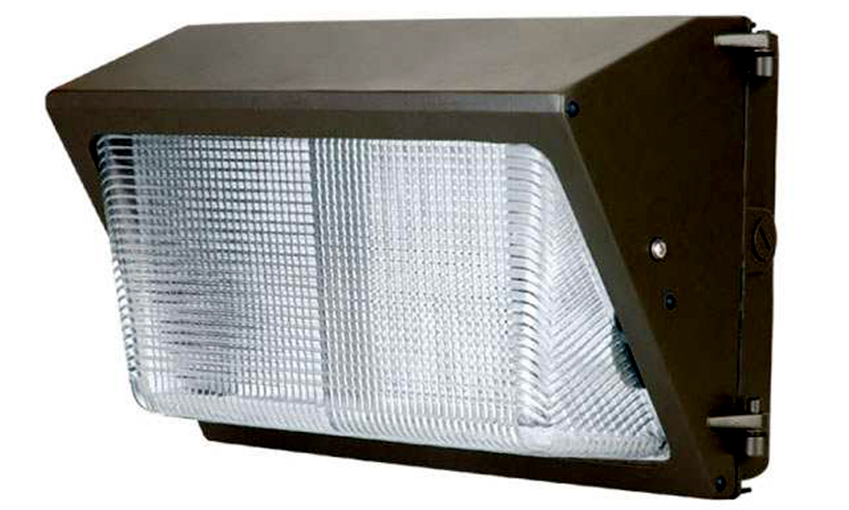

LED Wallpack Series – IP54

Electrosatically coated die-cast aluminium body & toughened 5mm UV resistant glass for building perimeter lighting in the most extreme environments - LED Wallpack ideal replacement for 70W SON at 4,400lm from just 40W

Products LED Wallpack Series – IP54

Product Details

LED wallpack is a favourite of the public sector, an ideal traditonal wallpack replacement. Powder coated (fade and abrasion resistant, electrostatically applied, thermally cured, triglycidal isocyanurate (TGIC) textured polyester powder coating) finish for a classic luminaire design, whilst being up to 60% more energy efficient as well as virtually maintenance free
with a +50,000 hour rated lifetime.

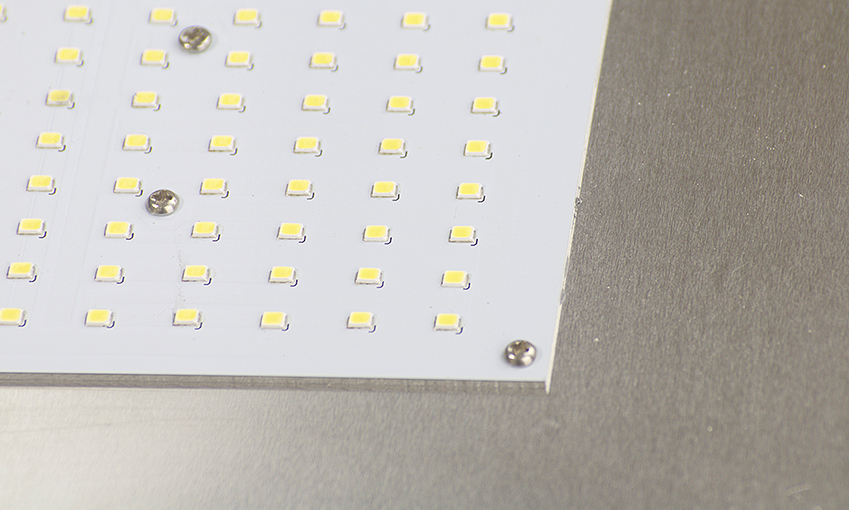

Direct illumination technology from an internal modular light engines consisting of SDM2835 Epistar® LEDs and on-board driver ensure a high operational efficacy of 120lm/W.

IP54 sealed die-cast aluminium housing, hinged between 2 parts for ease of maintenance and installation, encloses a 5mm toughened glass optic(non-fade like plastic models), making this
unit suitable for general purpose wall mount area and security lighting in a range of out-building applications such as public sector, walkways etc.

Product information

Durable with rated life span of +50,000 hours / No UV or IR emissions / Instant on & Flicker free / CE & RoHS international standards / Environmentally friendly & part recyclable: no mercury or other hazardous materials used / Die cast aluminium housing in bronze or RAL black finish – fade and abrasion resistant, electrostatically applied, thermally cured, triglycidal isocyanurate (TGIC) textured polyester powdercoat finish / 5mm toughened glass refractor (non-fade) / M20 x 1.5 IP66 Gland / Choice of knock-outs on sides & rear

Product Specification

Beam Angle

140°

Luminous Efficacy

Up to 120lm/W

Input Voltage

100-280V AC

High Colour Rendering Index

Up to 80Ra

LED Type

Epistar SMD2835 LEDs

Operating Temperature

-20°C to 50°C

Power Factor

≥0.95

Mounting Height

2.8-8.5m
