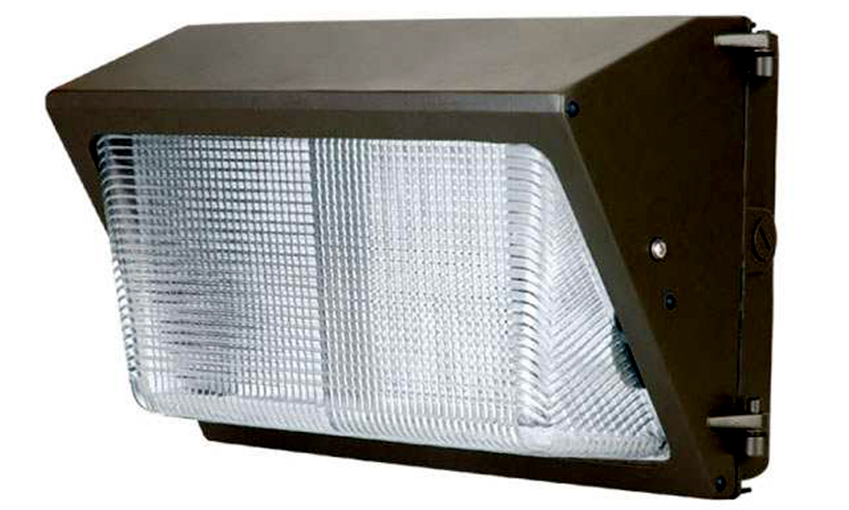

LED wallpack is a favourite of the public sector, an ideal traditonal wallpack replacement. Powder coated (fade and abrasion resistant, electrostatically applied, thermally cured, triglycidal isocyanurate (TGIC) textured polyester powder coating) finish for a classic luminaire design, whilst being up to 60% more energy efficient as well as virtually maintenance free
with a +50,000 hour rated lifetime.

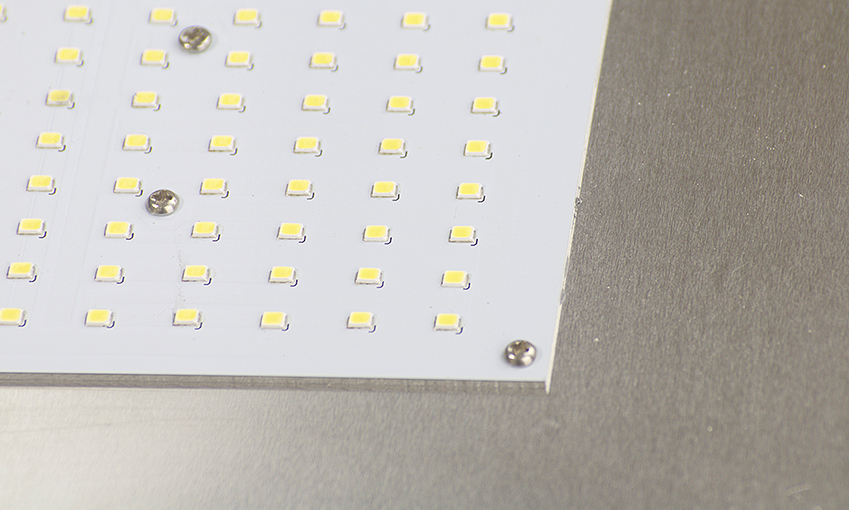

Direct illumination technology from an internal modular light engines consisting of SDM2835 Epistar® LEDs and on-board driver ensure a high operational efficacy of 120lm/W.
IP54 sealed die-cast aluminium housing, hinged between 2 parts for ease of maintenance and installation, encloses a 5mm toughened glass optic(non-fade like plastic models), making this
unit suitable for general purpose wall mount area and security lighting in a range of out-building applications such as public sector, walkways etc.
Product information
Durable with rated life span of +50,000 hours / No UV or IR emissions / Instant on & Flicker free / CE & RoHS international standards / Environmentally friendly & part recyclable: no mercury or other hazardous materials used / Die cast aluminium housing in bronze or RAL black finish – fade and abrasion resistant, electrostatically applied, thermally cured, triglycidal isocyanurate (TGIC) textured polyester powdercoat finish / 5mm toughened glass refractor (non-fade) / M20 x 1.5 IP66 Gland / Choice of knock-outs on sides & rear
Product Specification
|
Beam Angle |
140° |
|
Luminous Efficacy |
Up to 120lm/W |
|
Input Voltage |
100-280V AC |
|
High Colour Rendering Index |
Up to 80Ra |
|
LED Type |
Epistar SMD2835 LEDs |
|
Operating Temperature |
-20°C to 50°C |
|
Power Factor |
≥0.95 |
|
Mounting Height |
2.8-8.5m |
