Sedna Lighting

LED Surface Mount Dome Light

To replace conventional 2D CFL fittings

36% energy savings and a stylish light output of up to 1800lm from a series of high quality Epistar SMD 2835 LEDs. Suitable for a variety of commercial LED lighting applications in spaces such as stairwells, corridors and walkways.

Products LED Surface Mount Dome Light

Product Details

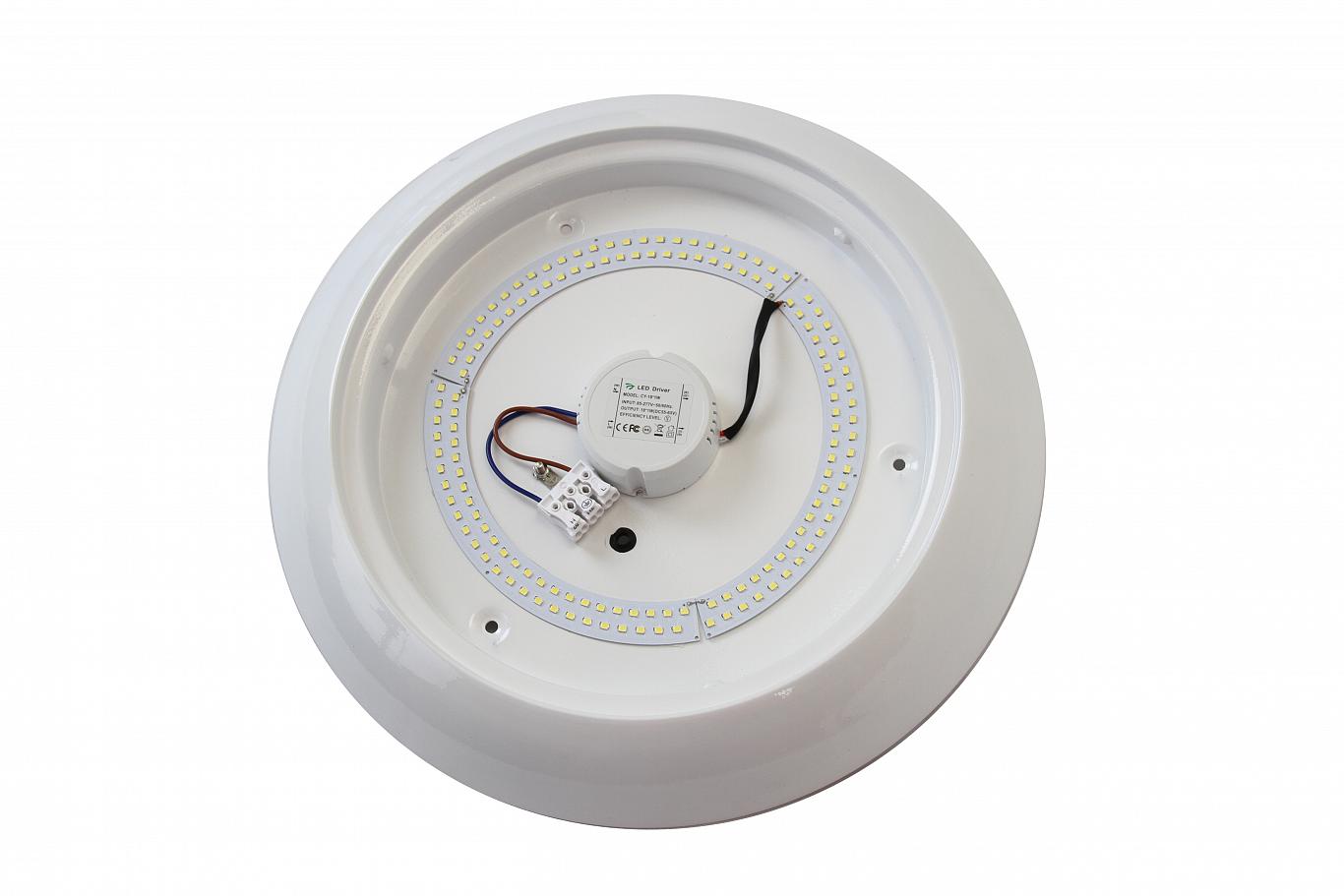

Decorative LED surface mount luminaire designed to replace conventional 2D CFL fittings with 36% energy savings. This fitting comprises of a high quality RAL White power coated aluminium base with a removable PMMA dome diffuser for uniform, stylish light output of up to 2000lm from a series of high quality Epistar SMD 2835 LEDs.

Rear fixing holes with a central cable exit mean this unit is suitable for both wall or ceiling in a variety of commercial spaces such as stairwells, corridors, walkways and small areas such as bathrooms (zone 3 – IP44) and cupboards.

Further options include dimmable options: DALI (-DL) / 1-10V (-AD) as well as integral 3-hour maintained/non-maintained (M3/NM3) emergency version (SDCBH-XX-EM) with self-test function & LED indicator light as well as built in microwave sensor (SDCBH-XX-MI) for intelligent occupancy control: adjustable lux sensitivity, range (180o / 0.5m – 8m) and duration (10secs – 5mins).

Product information

Durable with a rated life span of +30,000 hours / No UV or IR emissions / Instant on & flicker free / Conforms with international standards / Environmentally friendly & part recyclable: no mercury or other hazardous materials used / RAL White powder coated aluminium housing / Removable PMMA anti-glare diffuser / Adjustable microwave sensor: range / operation time / lux activation

Product Specification

Beam Angle

120°

Luminous Efficacy

Up to 88lm/W

Input Voltage

AC 100-280V

High Colour Rendering Index

≥ 85Ra

LED Type

Epistar SMD2835

Operating Temperature

-20°C to 50°C

Power Factor

≥ 0.95

Download product instructions here.
