Sedna Lighting

LED Linear High/Low Bay

Up to 22,000lumens from Linear series LED High/Low Bay Lighting - Industry leading 130lm/W from OMNI® LED Light engines - suitable for mount heights up to 12m whilst still giving 150Lux for standard warehousing applications

Products LED Linear High/Low Bay

Product Details

High/low Bay LED lights designed specifically for installations requiring high level light mounting. Industry leading luminous efficacy of 127lm/w from the complete luminaire utilising OMNI® LED Light engines, which also benefits from modular design of plug- &-play light engines ensures long term servicibility as well as a wide range of options in terms of beam angle & lumen output. With industrial applications in mind, the linear high / low bay can suit mount heights up to 12m. Up to 22,000lm makes this a unique direct replacement for 400W metal halide or SON fittings, energy efficiency, low luminous decay and maintenance were key factors in luminaire design.

Further enhancments include high efficiency Meanwell™ driver the the heart of the luminaire, whilst further options of dimmable: DALI (-DL) / 1-10V (-AD), built-in high bay PIR (-PIR) for occupancy detection and daylight dimming, as well as & integral emergency version with indicator light & self-test button.

Optional frosted diffuser (SDLHB-FRD-XXX) & Wire Guard for Sports applications (SDLHB-WG-XXX)

Product information

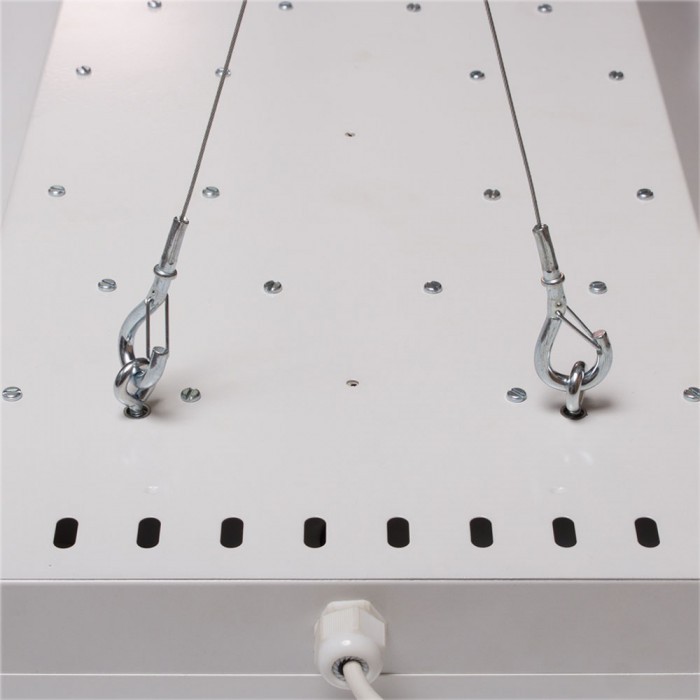

Durable with a rated life span of +50,000 hours / No UV or IR emissions / Instant on & Flicker free / CE & RoHS international standards / Environmentally friendly & part recyclable: no mercury or other hazardous materials used / Die cast aluminium heat sink & anodised aluminium reflector / Optional frosted PMMA diffuser / 1200mm suspension kit / Meanwell™ LED Driver

Product Specification

Beam Angle

120°(Modular)

Luminous Efficacy

Up to 127lm/W

Input Voltage

100-280V AC

High Colour Rendering Index

Up to 80Ra

Light Engine Type

SDOMNI-1140

Operating Temperature

-20°C to 50°C

Power Factor

≥0.95

Mounting Height

6-12m
