Sedna Lighting

LED Curve™ Series – Surface Mount

Fantastic value for money with ease of fitting.

An efficient LED replacement for up to 72W conventional fluorescent tubes. Saves up to 50% in utilities as well as reducing C02 by half. Available in a range of standard sizes and colour temperatures. Popular solution in commercial LED lighting applications.

Products LED Curve™ Series – Surface Mount

Product Details

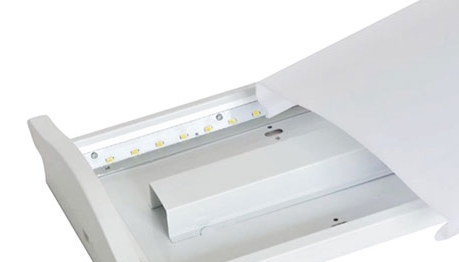

Low profile sectional design allows for installation with minimal intrusion into the environment, hence an ideal direct replacement for conventional surface mount T8-Tubes across standard sizes of 1200mm (4ft), 1500mm (5ft) & 1800mm (6ft), as well as new installations across a range of commercial applications such as schools, hospitals & general walkways.
Conventional design for direct replacements of traditional luminaires – RAL white steel housing finished off with a frosted anti-glare polycarbonate optic/diffuser for subtle, low-glare uniform lumen output.
Further options include 4-point suspension kit (SCCV-XXXXSUSP), as well as dimmable versions: analogue dimmable 1-10V (-AD), DALI dimming (-DL), DSI (-DSI) and 3-hour emergency self-test (-EM) or auto-test (-AEM) plus LED status indicator light.

Product information

Rated life span of +45,000 hours / No UV or IR emissions / Immediate start & flicker free / Environmentally friendly & part recyclable: no mercury or other hazardous materials / Lightweight galvanised RAL white steel housing / PC frosted optic/diffuser / M3/NM3 Emergency version also available.

Product Specification

Beam Angle

120°

Luminous Efficacy

Up to 100lm/W

Input Voltage

AC 220 – 240V

High Colour Rendering Index

Up to 80Ra

Light Engine Type

OMNI® HV Light Engines

LED Type

Epistar SMD 2835 LEDs

Operating Temperature

-20°C to 50°C

Colour Temperature

NW 4000-4500K

PW 5500-6000K

(Others available on request)

Download product instructions here.
