Sedna Lighting

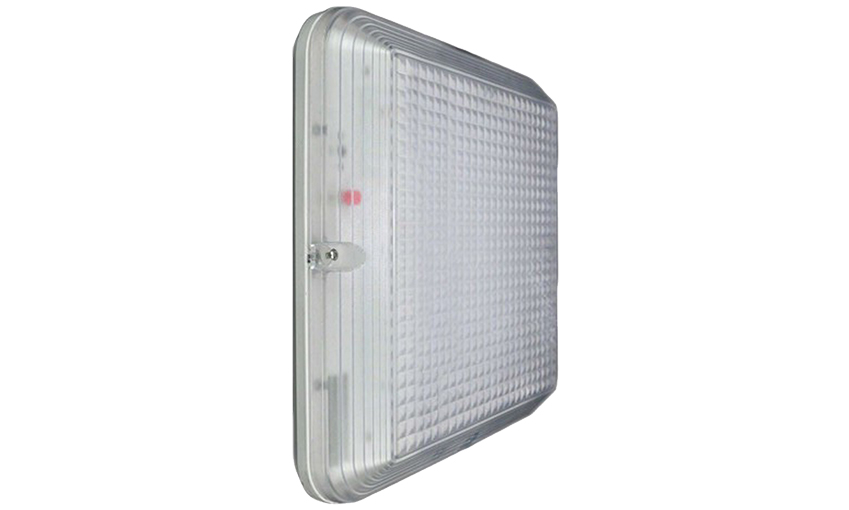

LED Vandal-Resistant Bulkhead

A direct replacement for 2D fluorescents.

A complete replacement popular in array of commercial LED lighting applications: suitable for stairwells, walkways, undercrofts and for outdoor use being IP65 rated. Anti-glare frosted diffuser offers a uniform, subtle light output of up to 1700lm.

Products LED Vandal-Resistant Bulkhead

Product Details

A complete LED replacement suitable for stairwells, walk ways, undercrofts as well as outdoor use being IP65 rated. Heavy duty die-cast aluminium back with an anti-glare frosted toughened diffuser for uniform, subtle light output up to 1600lm, this unit is designed to be a direct replacement for 28W 2D-flourescents, whilst boasting efficacy of up to 90lm/W. Hence energy savings over flourescent counterparts in the region of 35-40% with an equivalent reduction in utilities. Other benefits include minimised maintenance rated at 40,000 hours, high light output even in cold temperatures and minimised disturbance to wildlife due to non-ultraviolet light. Further options include integral 3-hour (M3/NM3) emergency version (SDBH-018-EM) with self-test function as well as built in microwave sensor (SDBH-XXX-MI) for intelligent occupancy control: adjustable lux sensitivity / sensitivity range (180o / 0.5m – 8m) and duration (10secs – 5mins). Choice of side or rear knockout.

Product information

Durable with a rated life span of +40,000 hours / No UV or IR emissions / Instant on & flicker free / Conforms with international standards / Environmentally friendly & part recyclable: no mercury or other hazardous materials used / Heavy duty diecast aluminium housing & 4mm IK09 toughened polycarbonate diffuser / Adjustable microwave sensor: sensor range/operation time/lux sensitivity/ M20 x 1.5 IP65 Cable gland

Product Specification

Beam Angle

120°

Luminous Efficacy

Up to 90lm/W

Input Voltage

AC 100-280V

High Colour Rendering Index

≥ 80Ra

Power Factor

≥ 0.95

LED Type

Epistar SMD2835

Operating Temperature

-20°C to 50°C

Download product instructions here.
