Sedna Lighting

LED Apex™ – direct/indirect

Direct/indirect illumination with high performance OMNI® LED Light engines for office & commercial applications - assists with LG3 / LG7 compliance - able to achieve UGR of 13-14 in typical office applications well within compliance range of <19

Products LED Apex™ – direct/indirect

Product Details

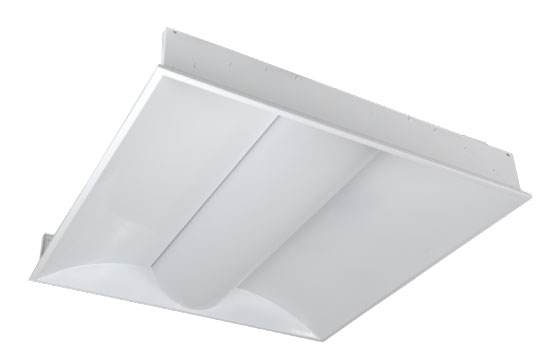

Standard T-bar ceiling grids for general commercial spaces such as office, classroom and meeting rooms are ideal
applications for the Apex™ series LED Luminaire, due to its direct/indirect illumination & high uniformity and anti-glare recessed PMMA diffuser assisting in LG3/LG7 compliance with a high degree of uniformity.

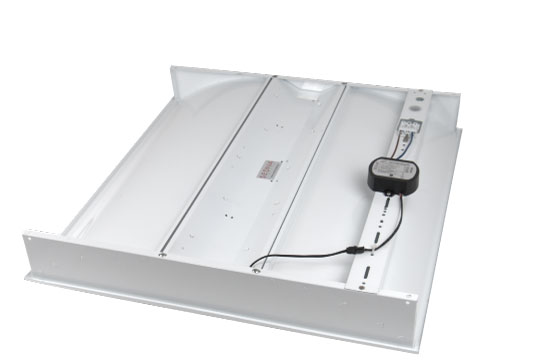

Utilising a series of OMNI®light engines, luminaire benefits from industry leading efficacy of 95lm/W, with added benefit of long-term maintenance & serviceability of the luminaire possible. Spring clips for metal ceiling grids (‘Burgess’ type ceilings) also available (SDAPEX-SPCL).

Product information

Rated life span of +45,000 hours / No UV or IR emissions / Immediate start & flicker free / Environmentally friendly & part recyclable: no mercury or other hazardous materials / Lightweight galvanised RAL white steel housing / PMMA anti-glare diffuser / M3/NM3 Emergency version also available / Optional built-in microwave detection / Optional external mount PIR sensor with daylight dimming function & occupancy detection.

Product Specification

Beam Angle

120°

Luminous Efficacy

Up to 95lm/W

Input Voltage

100-280V AC

High Colour Rendering Index

Up to 80Ra

Light Engine Type

OMNI® Light Engines

Operating Temperature

-20°C to 50°C

Download product instructions here.
