Sedna Lighting

LED Aisle Luminaire – High/Lowbay

LED Aisle Luminaire - High/Lowbay

designed specifically for high level light mounting in between warehouse racking/aisles.

Products LED Aisle Luminaire – High/Lowbay

Product Details

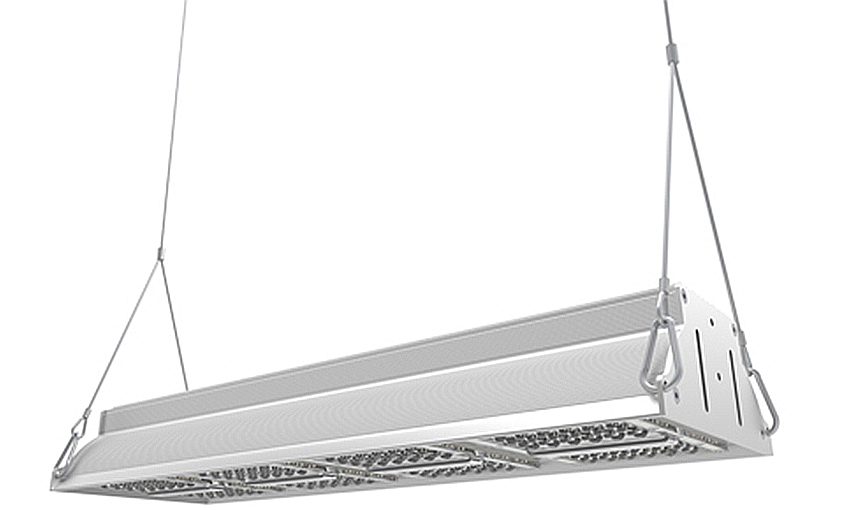

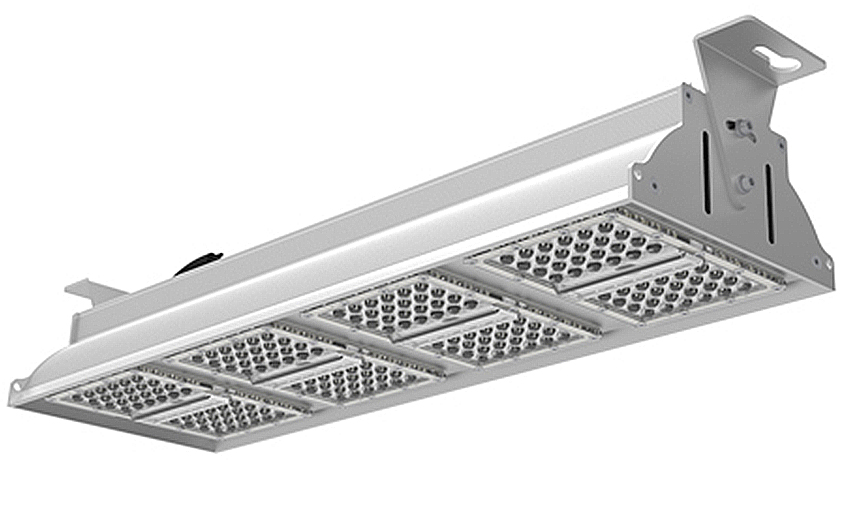

Aisle LED luminaire is designed specifically for high level light mounting in between warehouse racking/aisles, with a 40˚x 80˚optic for a high degree of uniformity along narrow linear run (typically 12m centres), whilst ensuring consistent illumination of racking bays. Adjustable bracket for surface mounting around a 40˚ angle, as well as 1m suspension kit (SDAIS-XXX-SUSP).

Industry leading luminous efficacy of 110lm/w from a Nichia® LED chip & Meanwell driver combination. With industrial applications in mind, the aisle light suits mount heights up to 18m, with up to 26,000lm output from just 240W – making this a unique direct replacement for 400W metal halide or SON fittings. Long life means annual re-lamp, expensive lift equipment and inconvenience is negligible, as well as much sought after energy savings up to 75%.

Further enhancements include options of dimmable: DALI (-DL) / 1-10V (-AD) and built-in high bay PIR (-PIR) for occupancy detection and daylight dimming.

Product information

Durable with rated life span of +50,000 hours / No UV or IR emissions / Instant on & Flicker free / CE & RoHS international standards / Environmentally friendly & part recyclable: no mercury or other hazardous materials used / 6063 Silver Anodised Aluminium heat sink & PMMA optics / 1m suspension kit (SDAIS-XXX-SUSP) / Meanwell™ HLG Driver

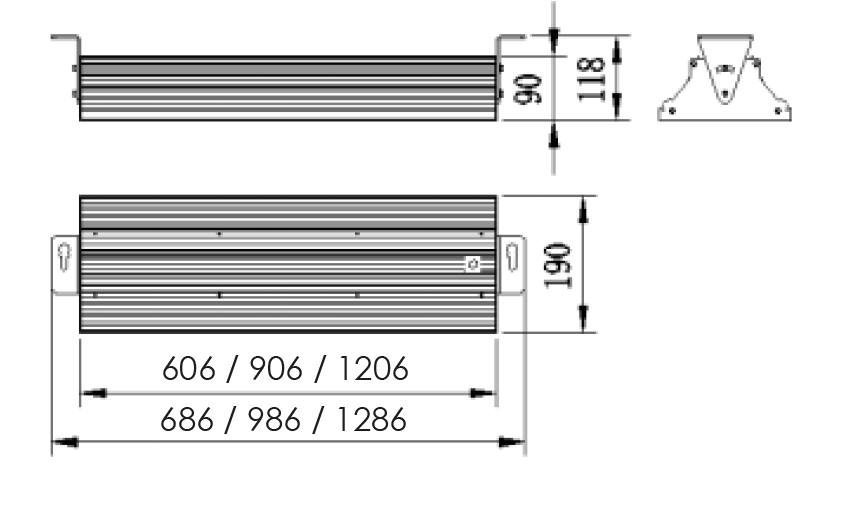

Product Specification

Beam Angle

40° x 80°

Luminous Efficacy

Up to 110lm/W

Input Voltage

AC 110-280V

High Colour Rendering Index

≥ 80Ra

LED Type

Nichia® SMD LEDs

Operating Temperature

-20°C to 50°C*

Power Factor

≥ 0.95

Product Gallery
