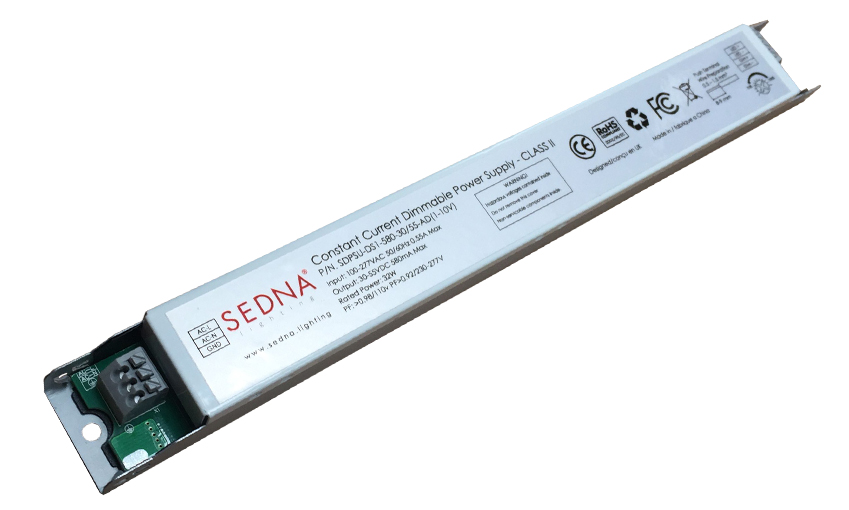

Dimmable (1-10V) Linear Constant Current LED Driver

High efficiency constant current LED drivers / power supplies, with added advantage of dimming, linear low-profile housing make the DS series drivers suitable for internal luminaire usage.

Products Dimmable (1-10V) Linear Constant Current LED Driver

Product Details

Linear series high efficiency constant current LED drivers / power supplies, with added advantage of dimming (analogue dimmable 1-10V).

IP21 design, linear low-profile housing make the DS series drivers suitable for internal luminaire usage. WAGO® push-wire connectors for wire feed (wire preparation 0.5 – 1.5mm2 / 8-9mm), available from 580mA – 1500mA (32W – 82W), hence suitable for a wide range of light engines with a output voltage of 30-55V DC.

For further information & advice please contact us prior to ordering.

Product information

Durable with rated life span of +55,000 hours / No UV or IR emissions / Instant Illumination & Flicker free / CE & RoHS international standards / Environmentally friendly & part recyclable: no mercury or other hazardous materials used / Heavy duty diecast aluminum housing & 2mm toughened PC optics / Complies with EN60598

Product Specification

Input Voltage

100-280V AC

Frequency

[50-60Hz]

Power Factor

PF>0.98/110V PF>0.92/230V

THD

THD<5.2%/110V THD<7.4/230V

Operating Temperature

-20°C to 50°C

IP21

CLASS I

Built in protection:

short circuit / over current /
over voltage / over temperature

Voltage Tolerance

+/- 10%

Download product instructions here.
